EWALI:a Data-aware Learned Index Schema for Efficient Writes

应用场景:

(1)支持读写工作负载,在重写工作负载中性能表现很好

(2)使用轻量的light-weight data-aware data partition algorithm构建模型

(3)当data distribution发生变化,EWALI会自动分裂相关叶子节点,重训练模型

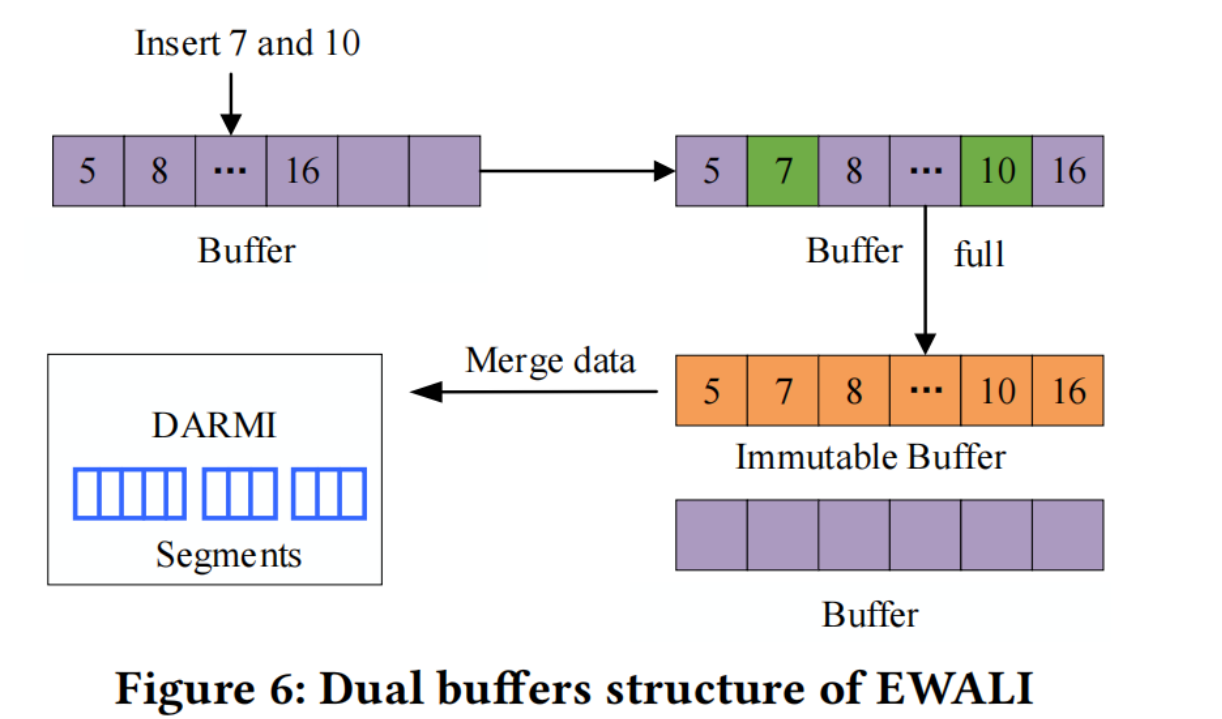

(4)并采用duel buffer(双缓冲)来处理新数据,并采用延迟更新机制合并数据,提高写入性能

问题描述:
(1)RMI不支持写操作,插入新数据导致data distribution变化,需要重训练所有模型
(2)RMI构建时采用统一的数据划分策略,没有考虑划分到同一模型中数据的相似性,导致预测不准确

难点和分析过程:

(1)现在支持写操作的方法包括就地插入(gap array,需要移动数据或产生不必要的空间开销)缓冲区插入(发生写入阻塞)

(2)现存的data-partition-algorithm

K-means算法(Dabble模型)

贪心算法(ASLM)

Piece-wise linear function(PGM-iNDEX FITing-Tree)

以上不同的算法有不同的计算开销和误差

解决方案:

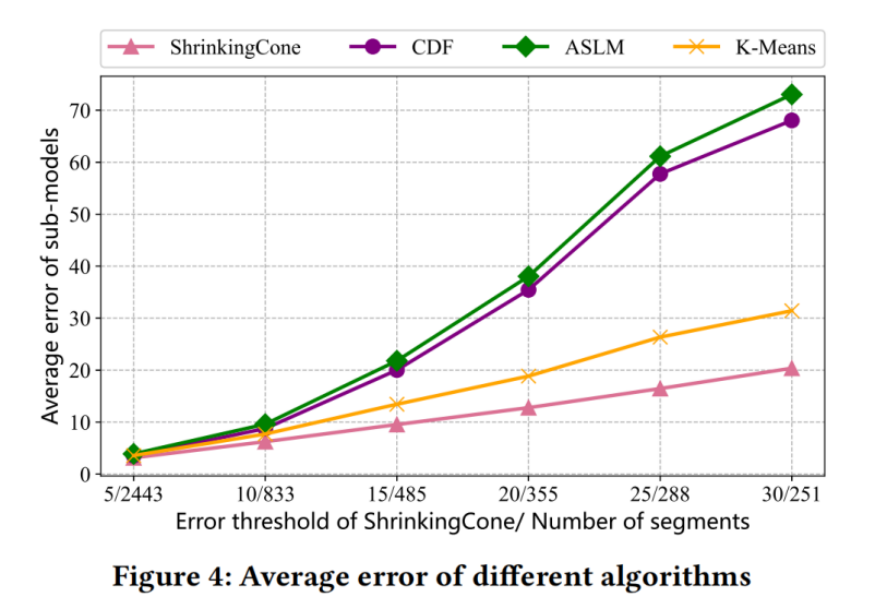

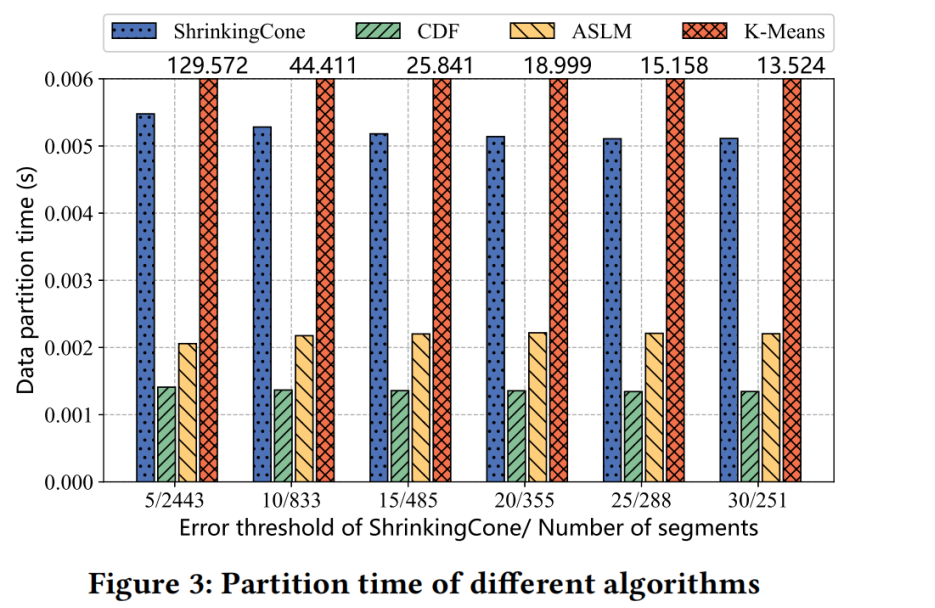

Data-partition-algorithm

考虑lower model error 和 time cost 以及 memory usage选择ShrinkingCone

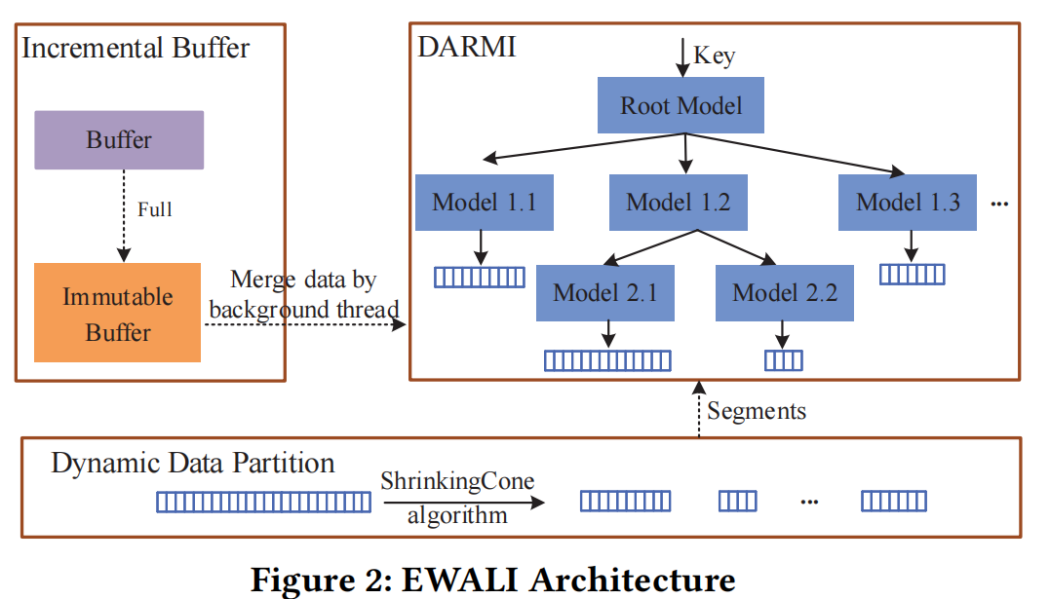

DARMI Design

Model Training:

(1)non-leaf node
(2)leaf node

Model Retraining:

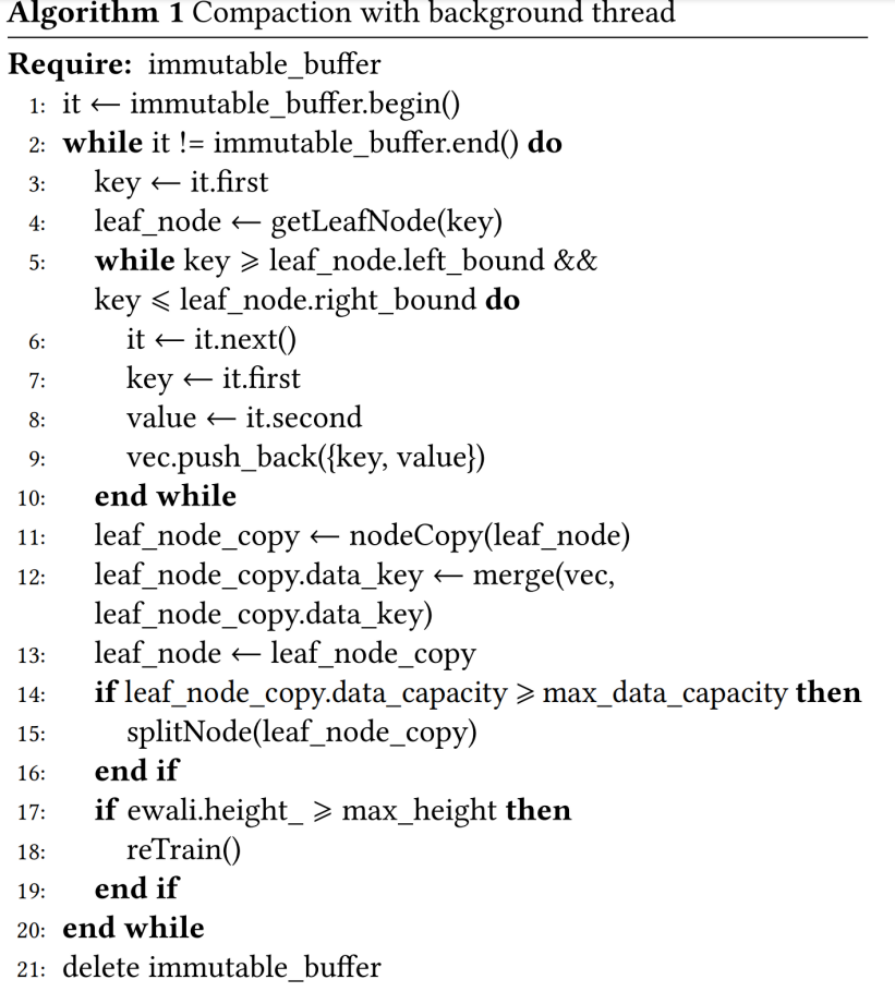

当incremental buffer与segments合并后,改变了数据分布,后台线程被唤醒进行retraining操作

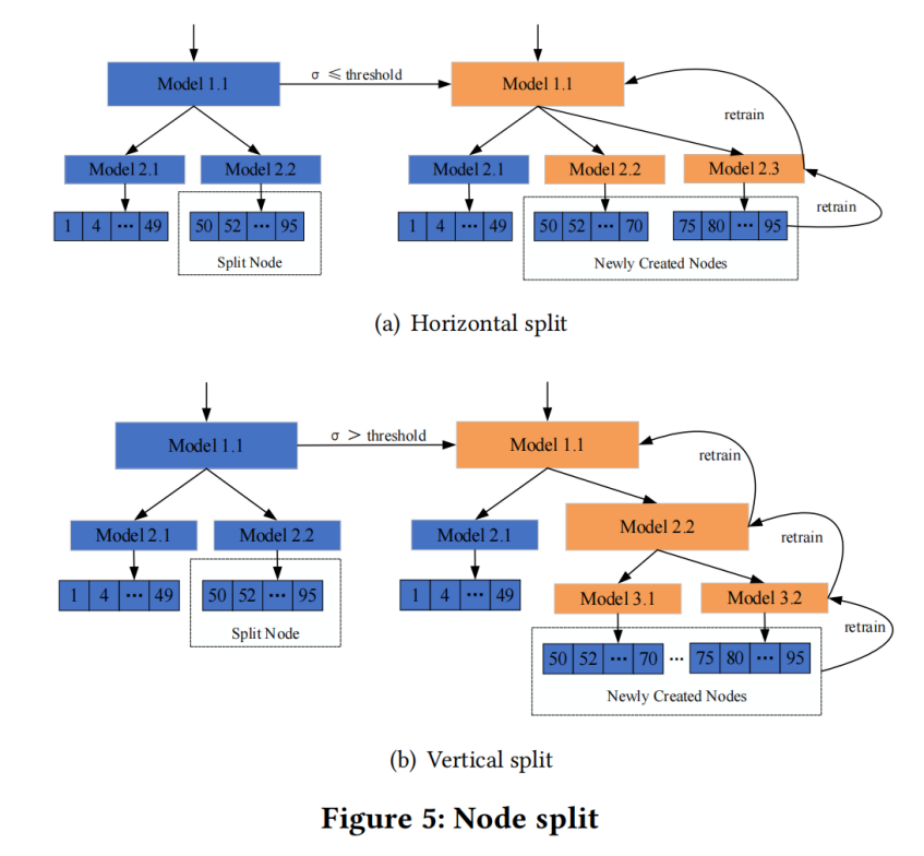

Node Split:

当一个Node管辖的data数量超过一定数量时,会产生以下影响
1.过多的数据会导致重训练的时候要扫描更多的key,增加训练耗时,降低写性能
2.过多的数据也会让线性模型更难去拟合,精准度会下降

(1)horizontal split
Disadvantages: result in lower prediction accuracy of parent model

(2)Vertical split
Disadvantages: increase the height of DARMI, result in high lookup time

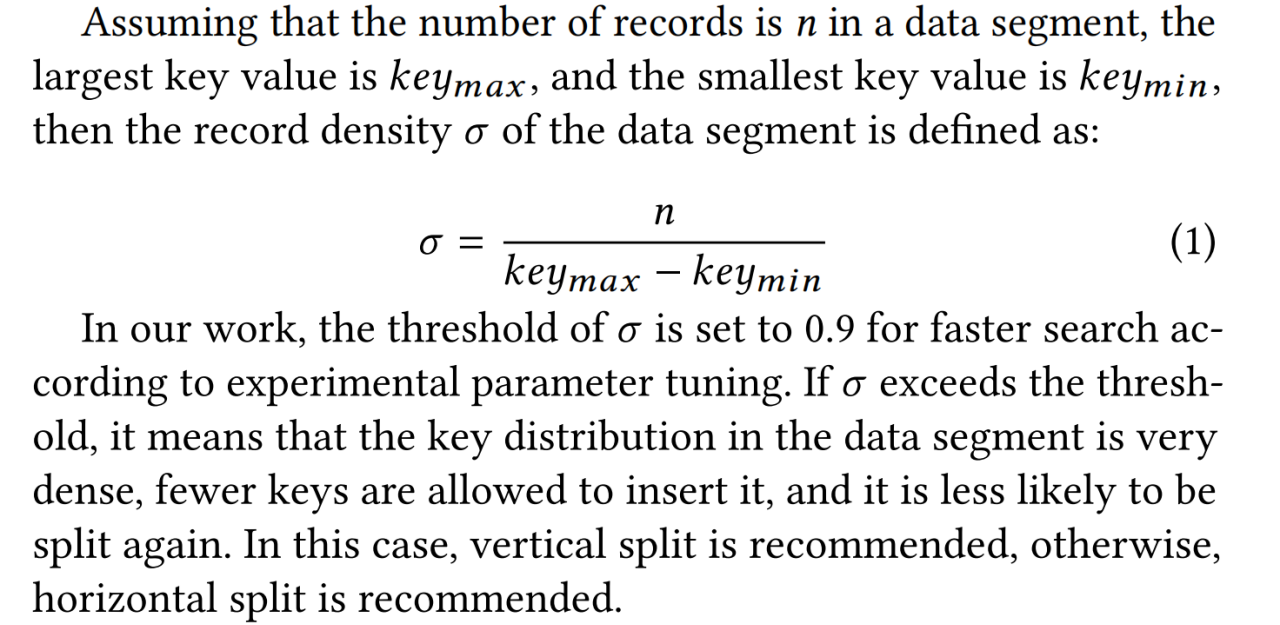

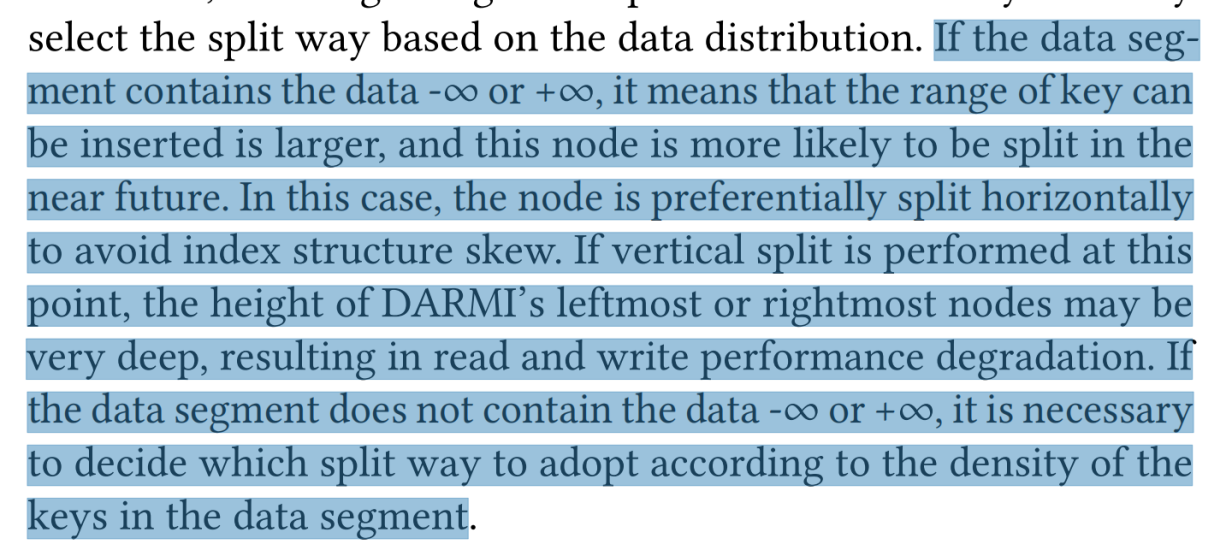

DARMI会动态地选择两种split方式

Retrain DARMI

当DARMI的高度达到一个阈值,查找性能退化地过于严重了,需要对root Node进行重训练,
将所有的old leaf node的first key用来训练root node的线性模型,DARMI又变成two-layer

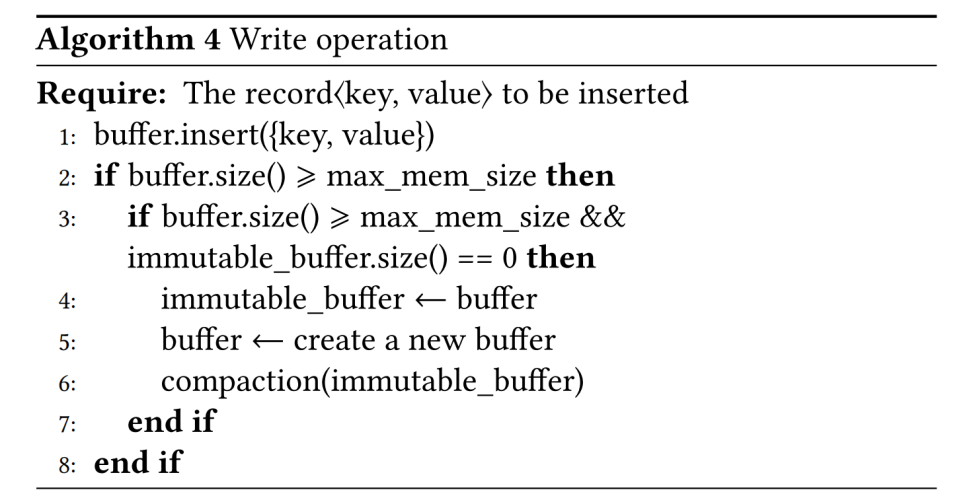

Incremental Buffer Design

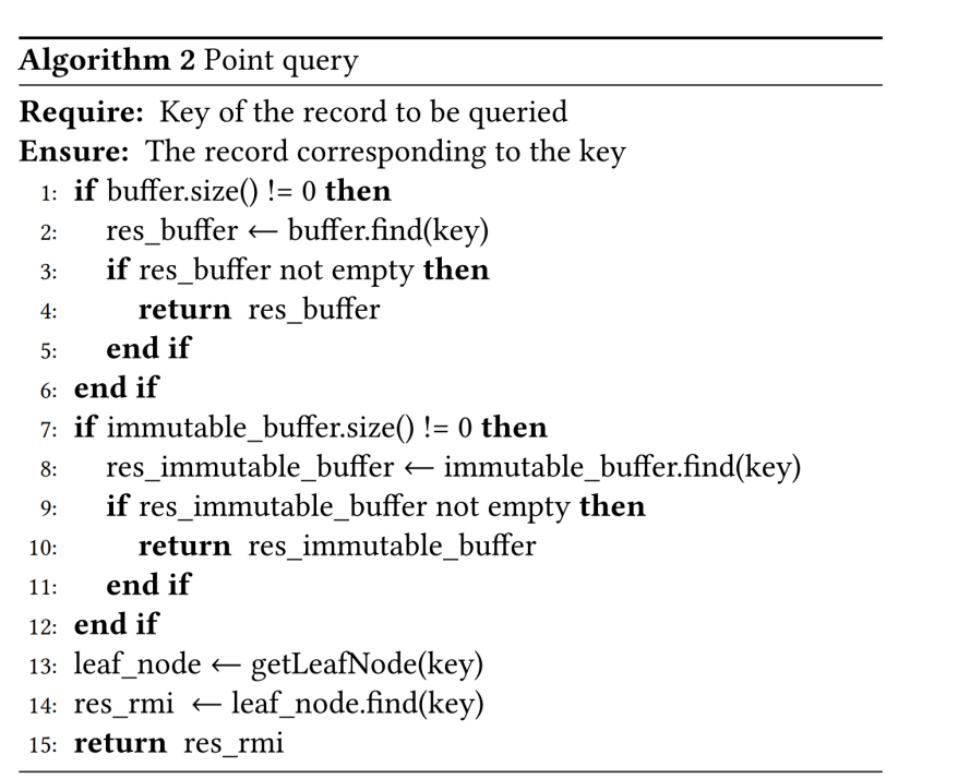

DARMI的核心操作

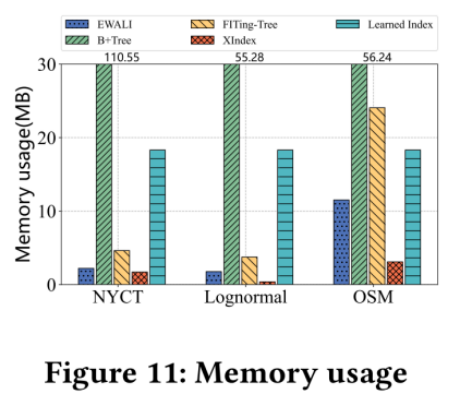

结果:

数据集:

真实数据集(NYCT、OSM) 合成数据集(Lognormal)

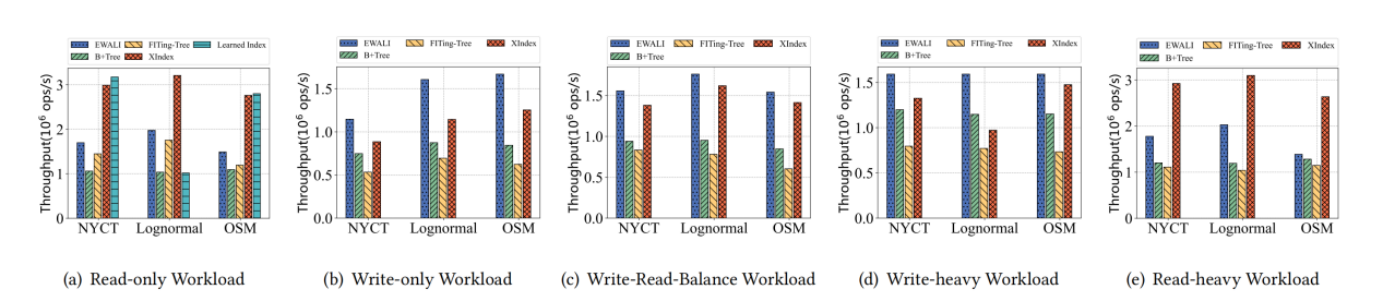

工作负载:

(1)read-only (2)write-only (3)write-read-balance (50% read 50%write)

(4)write-heavy(95% write 5% read) (5)read-heavy(95% read 5%write)

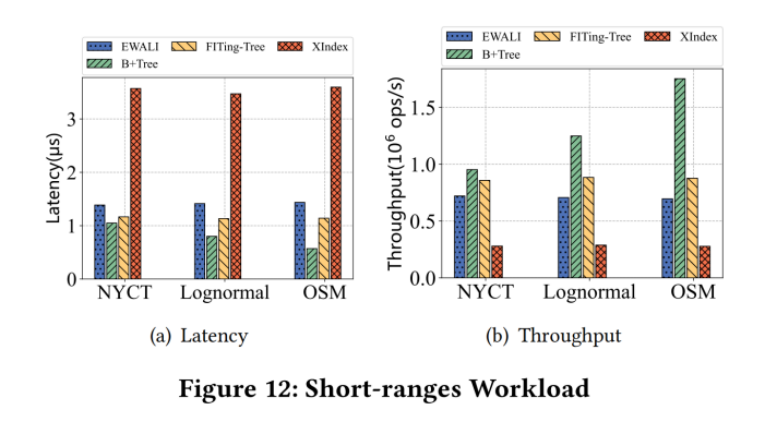

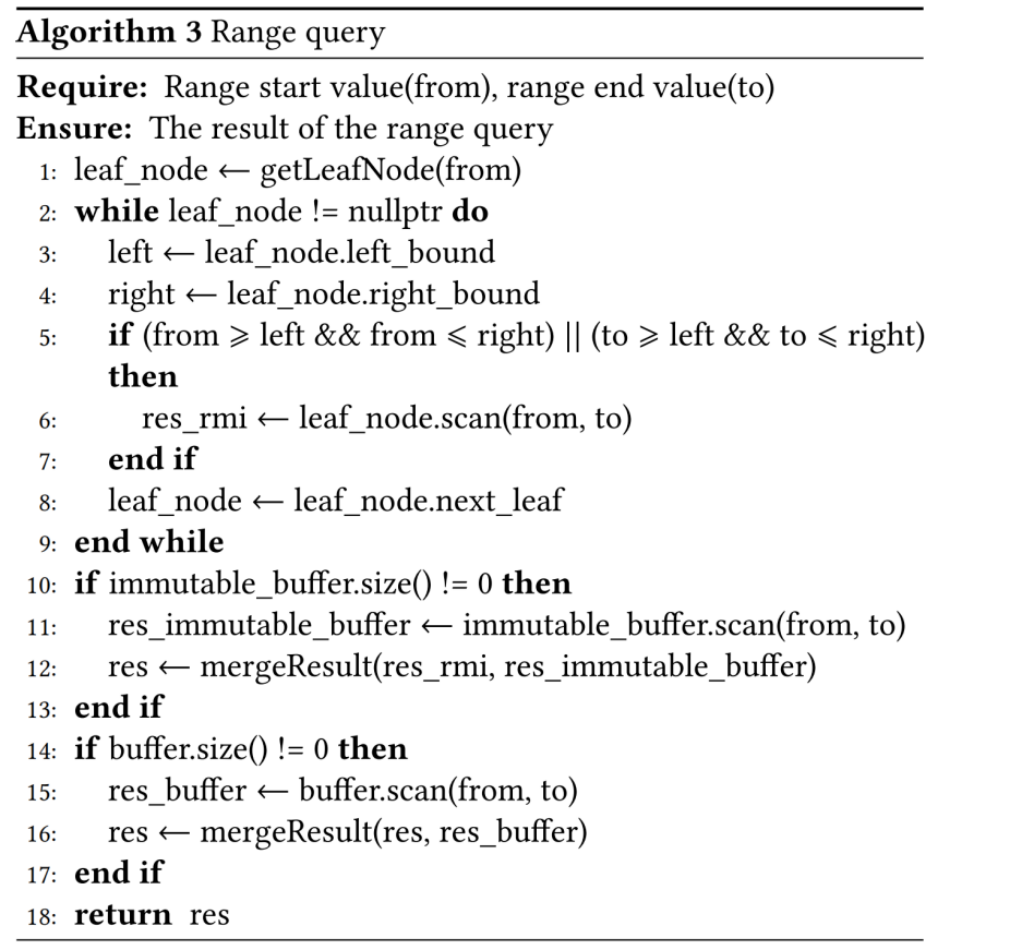

(6)short-ranges(95% range queries 5% write)
